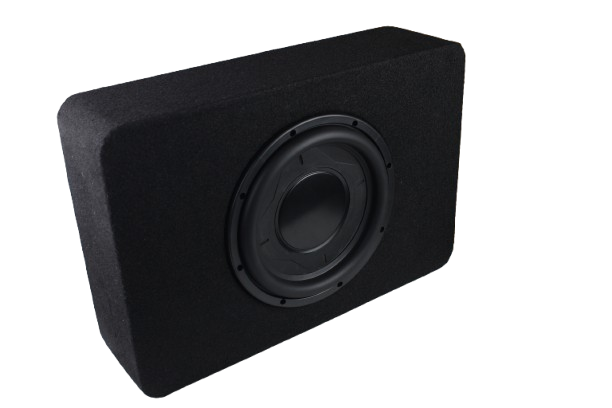

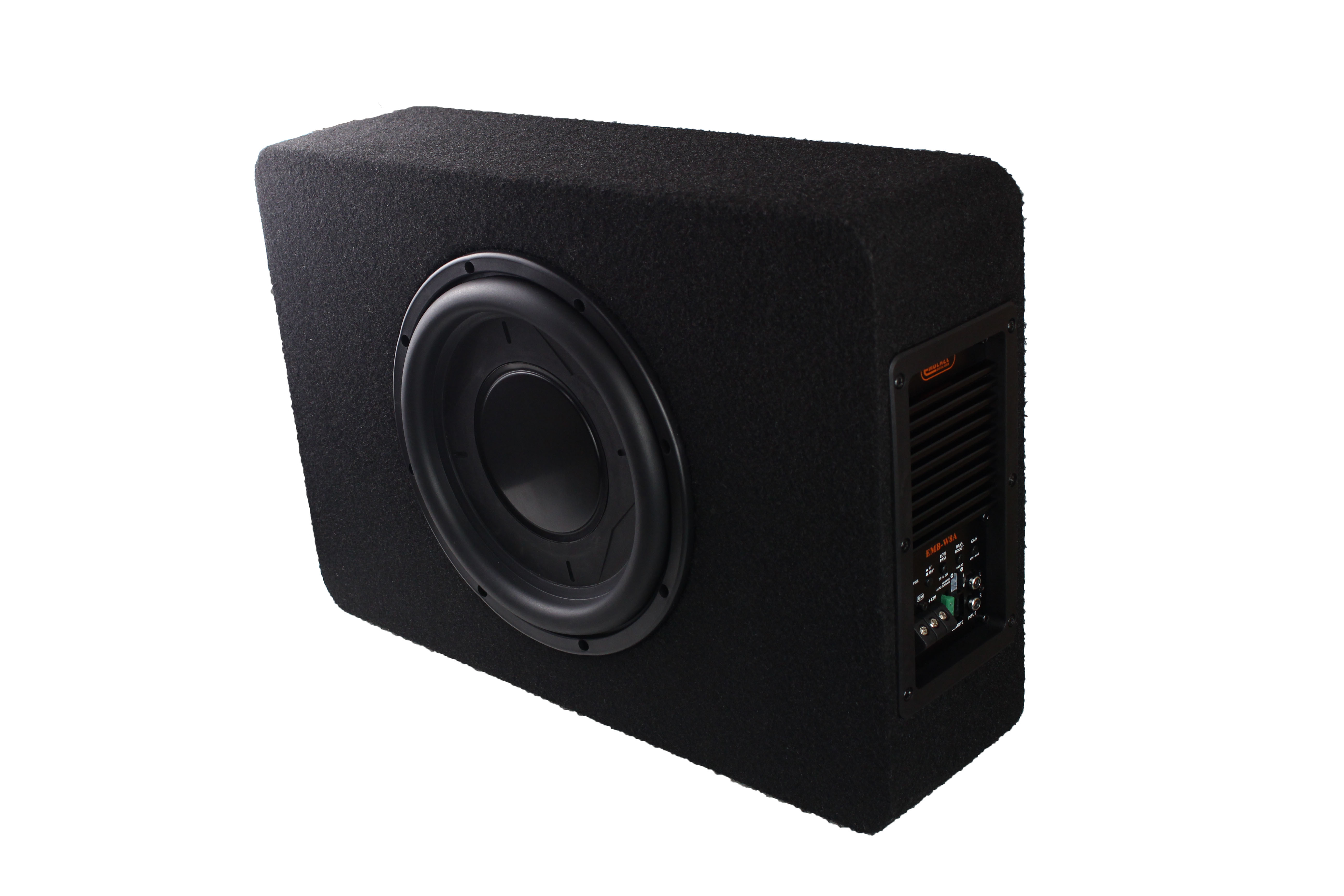

WS-G10PP
Frequency Response:18Hz to 200Hz
Power Handling(Watts RMS):200 Watts RMs @3.0ohms
Enclosure Type:Sealed
Enclosure Material:3/4” MDF(Medium Density Fiberboard)
Integrated Amplifier:300 Watts RMs @2.0ohms
Crossover Controls:Variable 30 Hz to 200Hz12dB/0ctave Butterworth
Tone Controls:Bass Boost 0dB to +12dB
Phase Control:0” to 180”
Input Sensitivity:Low-Level:150 mV to 6VHigh-Level:1.8V
input lmpedance:20k Ohms
Power Wire Gauge:B+/GND: 8 AWGREM :18 AWG
Circuit Topology Class:Class-D
